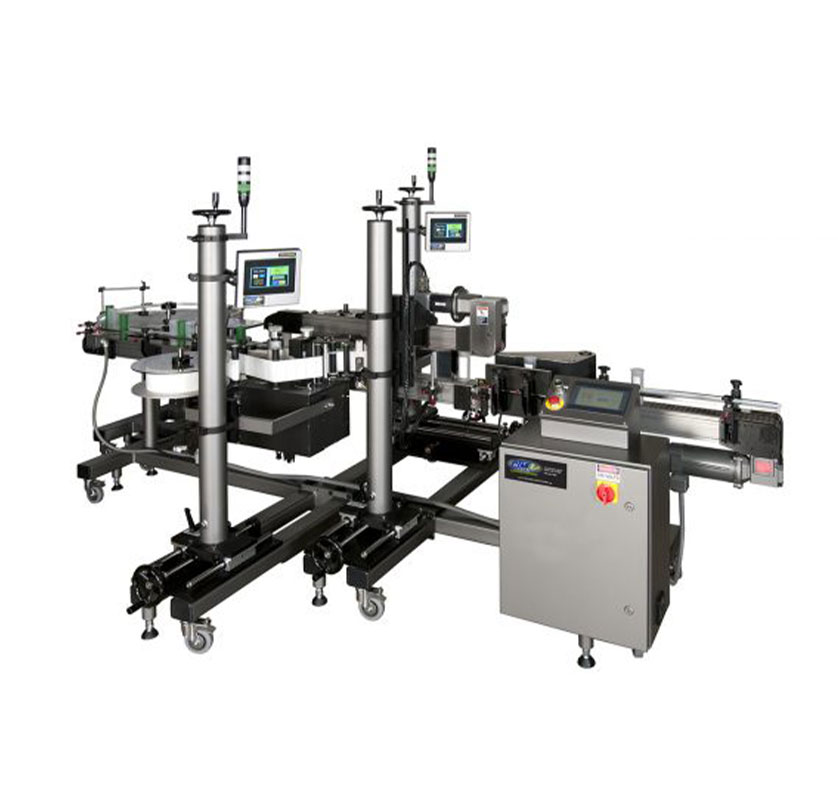

Front and Back label applicator Machine.

Front/Back/Wrap Labeling System

Description

In order to meet the ever-changing needs of modern society, CTM Labeling System has designed a fully automatic, competitively priced label applicator that’s designed to fit a variety of customer needs.

This custom labeling system is capable of being utilized for two different label applications – front and back labeling and wrap labeling. Depending on the product or package being labeled, we will determine which configuration will best suit your needs.

Key Features

Accommodates various products, with conveyors from 2.3″” to 18″” wide and from 4′ to 12′ long
Several enhanced and value-added options come as standard
Conveyor velocity from 90′ per minute to 120′ per minute
Additional, optional features available for added compatibility with your facility

Safety Features

This wrap label applicator comes in a NEMA 4 main enclosure and OSHA lock-out, in compliance with standards.

The NEMA 4 enclosure helps to prevent unwanted moisture from finding its way into the electrical components of the label applicator.

This label applicator’s lockout system allows for quick and safe disabling of the labeling system should a surge in hazardous energy occur.

Enhanced Features That Come Standard

The primary frame on this label applicator is made from heavy-duty tubular steel to ensure a capacity that can handle any workload.

Each front/back/wrap label applicator comes with a premium color touch screen, designed by Maple Systems. The color touch screen allows for accessible control and easy readability of all the essential functions on the labeling system.

Optional Features

CTM’s Front, Back and Wrap Labeling System is capable of being configured with optional features that can bring enhanced workflow to your facility. Options include:

Stainless steel frame
Encoder speed following for labelers
Stack light(s)
Label on product scanning and eject
Pneumatic – required with certain features

If there are other features that you’d like designed for your custom front/back/wrap label applicator, please contact CTM Labeling Systems.

Ensure that your facility is running at peak efficiency with this state-of-the-art, custom label applicator that is made to fit your exact needs.

Contact CTM Labeling Systems today to get started on ordering your Front/Back/Wrap Labeling System.

Specifications

Voltage

108 – 132 VAC

Current

10-20 amps

Frequency

50/60 Hz

Phase

Single

Optional

208V, 220V, 440V

Features

Stainless steel frame, HMI operator touch screen Encoder speed following for labelers

Dimensions

Varies, approx. 75

Height

Width

144″ Long

Weight

Approx. 1200 lbs

Operating

40° F to 105° F (5° C to 40° C)

Storage

-4° F to 105° F (-20° C to 40° C)

Conveyor Variations

6′ to 12′ long 2.3″ to 12″ wide

CTM has built a reputation based on decades of good design, local manufacturing, and excellent support for customers interested in purchasing automated labeling systems.
