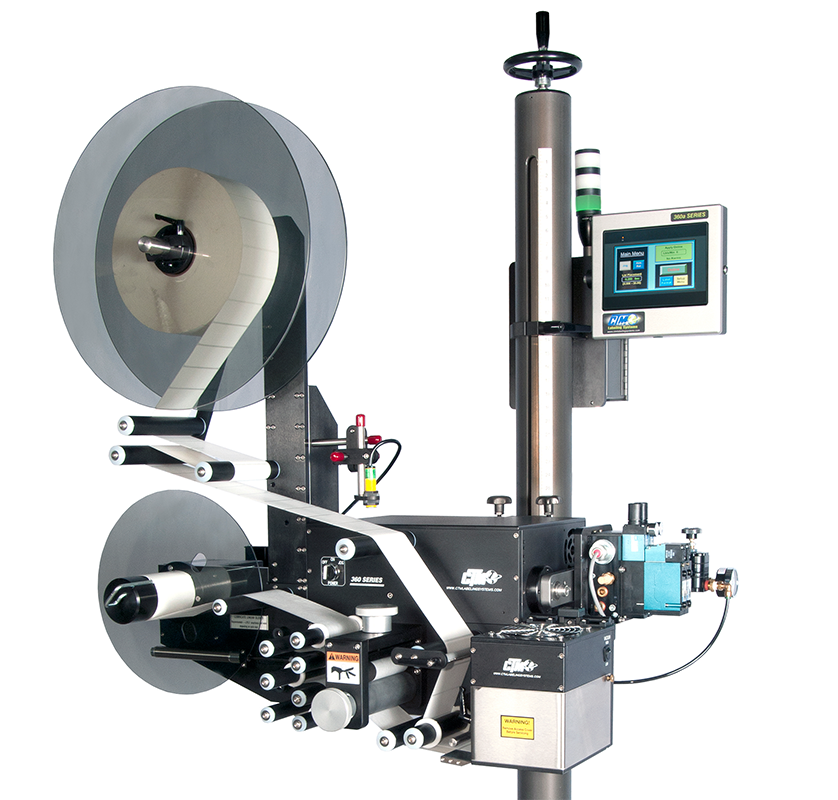

360a High Speed Labeler Machine.

360a High Speed Label Applicator

1
2
3
4
5
360a High Speed Label Applicator Brochure image.

Description

The CTM 360a High Speed Label Applicator is a rugged, versatile applicator loaded with standard features that are optional on most other applicators.

Key Features

  • Fast Dispense Speed for Label Application
  • State-of-the-Art Microprocessing Controls
  • Three Different Label Application Configurations Available

Incredible Dispense Speeds For Fast Label Application

The 360a High Speed Label Applicator comes with a unique and specially designed stepper drive that is capable of dispensing labels at speeds of 2100 inches/minute.

With the built-in dual microprocessor on board, this label applicator is capable of variable speeds depending on workload. The 360a high speed label applicator is programmable from 1500 inches per minute to 2100 inches per minute, with oversize unwind and rewind.

This applicator has also been programmed with speed profiling ability to determine accurate label application speed.

State-of-the-Art Microprocessor Control Setup

The 360a High Speed Label Applicator is equipped with state-of-the-art electronics featuring a dual microprocessor control.

One 32-bit processor supervises the application program while the digital signal processor (USP) supervises the motion loop resulting in faster response times and improved application accuracy.

Removal and repair is simplified with the control setup to eliminate downtime and cost.

The 360a High Speed Label Applicator controller is also equipped with onboard I/O, prewired to external connectors to accommodate the following:

  • Low Label Conditions
  • Web Break and End of Web Conditions
  • Tamp Extend & Tamp Home Switching
  • Rate & Velocity Compensation
  • Profiling
  • Zero Downtime Configuration of Applicators

Each machine is shipped pre-programmed with pre-wired connectors to control all of the above accessories. (Some additional hardware may be required.)

Configurable Label Application Method

Like our other commercial label applicator models, the 360a High Speed Label Applicator is able to be configured based on the needs of your facility. Labels can be applied using one of three methods: air blow, tamp and merge.

Please note that each application method has its own minimum and maximum label sizes.

Stay ahead of demanding workloads and prevent unnecessary downtime with the 360a High Speed Label Applicator. CTM Labeling System is the nation’s leading manufacturer of label applicators and is happy to help you find a labeling system that works for you. Contact us today to request more information on our label applicators.

Specifications

Series

360a

Voltage

108 VAC
132 VAC Available

Current

10 amps

Frequency

50/60 Hz

Phase

Single

AirConsumption @ 60-90 psi

Up to 4 CFM

Label Placement

± 1/32 in

Air Blow Width

39 in

Air Blow Height

38 1/2 in

Air Blow Depth

27 1/2 in

Merge Width

43 in

Merge Height

40 in

Merge Depth

27 1/2 in

Tamp Width

42 in

Tamp Height

37 in

Tamp Depth

27 1/2 in

Product Sensing

Retroreflective scanner provided as standard, other types available

Label Sizes

Min. Air Blow (W X L)

3/4 X 3/4 in

Max. Air Blow (W X L)

5 X 5 1/2 in

Min. Merge (W X L)

3/4 X 3/4 in

Max. Merge (W X L)

5 X 20 in

Min. Tamp (W X L)

3/4 X 3/4 in

Max. Tamp (W X L)

5 X 10 in

Local Roll Size

Max. OD Core

20 in

Max. ID Core

3 in

Optional

16″ OD x 3″ or 6″ ID cores

CTM has built a reputation based on decades of good design, local manufacturing, and excellent support for customers interested in purchasing automated labeling systems.
