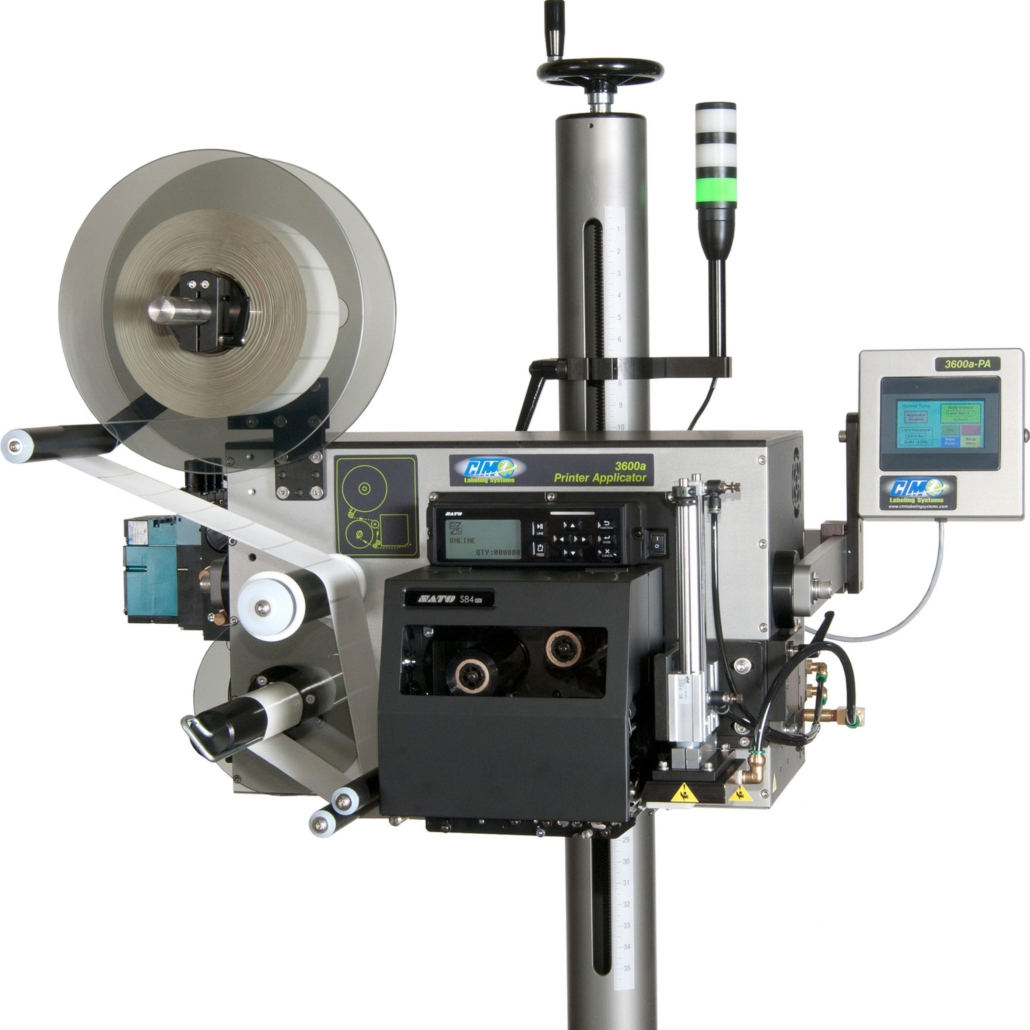

3600a-PA Series Printer Applicator

Description

If you’re looking for a print and apply application solution for your business or facility, look no further than the 3600a-PA Printer Applicator by CTM Labeling Systems. The machine can be mounted in various positions to apply labels to the tops, sides or bottoms of a wide range of products. The 3600a Printer Applicator is highly versatile and configurable to fit your needs.

Key Features

Tamp-blow application
Several print engine configurations available for your needs
Label insertion widths up to 7.1 inches
Multiple print resolution and speeds
Support for over 10 different bar code types

NOTE: Sizes depend on print engine model, contact CTM Labeling Systems for custom sizes and shapes.

Different Print Engine Configurations

The CTM 3600a-PA printer applicator offers configurations with both Sato and Zebra print engines. Depending on the industry and workload the printer applicator will need to handle, each engine is tailored for their specific needs. Regardless of which one you choose, each one is geared toward high efficiency in the work place to provide continuous productivity.

Multiple Label Size Accommodations

3600a-PA Series Printer Applicator is capable of being used for both small and large size labels. Anything up to 7.1 inches wide is able to be fed into the print and apply machine. With its user-friendly display and plc control, you’ll always have quick access in order to set-up operating parameters based on the labels being used. This can also be accessed via remote input.

Different print engines handle different size labels. For the Sato print engine, the label size minimum is 1 inch wide by 1/4 inch long, up to 6.5 inch wide by 10 inch long. The Zebra allows anywhere from 1/2 inch wide by 1/2 inch long to 7.1 inch wide by 10 inch long.

Multiple Print Resolution and Speeds

Whatever you need to print, the 3600a is able to accommodate. The 3600a-PA series can print at DPI resolutions of 203 DPI, 305 DPI and 600 DPI. Print speeds can also be programmed up to 12 inches per second, dependent on DPI.

The CTM 3600a-PA printer applicator is also capable of utilizing fonts of various sizes and styles with independent height and width expansion. Industry standard OCR A/B font also included.

Various Bar Code Types

Regardless of the industry you need to print bar code labels for, the 3600a-PA series printer applicator is able to handle the task. The CTM 3600a-PA series has support for the following label types: EAN 8/13, Code 39, Code93, UPC A/E (with extensions), Code 128, 2 of 5, Maxicode, DataMatrix, PDF417, MicroPDF, CODABAR, MSI, and POSTNET. Regardless of whether you need bar codes for consumable goods, badges or anything in between, the 3600a-PA label applicator has the versatility to fulfill your needs

Standard Features

Heavy Duty Construction
Tamp Blow Applicator
External Valves and Controls
Operator Keypad & Display
12″ O.D. Label Roll
I/O Connection and Communication Port Connections.

Optional Features

Low Label/Low Ribbon
Out Of Label/Out of Ribbon
End of Web
Red, Amber and Green “Ready” Stack Lights
16″ Powered Unwind for large label rolls

The 3600a-PA Series Print Applicator is designed to be a heavy duty and versatile print and apply solution that can be configured to match your needs. With 3 different print engine configurations, multiple mounting positions and extensive labeling support, the 3600a-PA Printer Applicator is an excellent solution for many industries.

CTM Labeling Systems is the industry leader in providing durable, quality label print and apply solutions with excellent customer support. Request more information to get started.

Specifications

Series

3600PA

Voltage

108 – 132 VAC

Current

5 amps

Frequency

50/60 Hz

Phase

Single

AirConsumption @ 60-90 psi

3 – 5 CFM

Length

31.5 in

Width

27.5 in

Height

23.5 in

Approx. Weight

150 lbs

Communications

RS 232, Parallel, Ethernet, Wireless
Others available

Printing Methods

Thermal Transfer & Direct Thermal

Label Sizes

Min. Sato (W x L)

1.0 x 1/4 in

Min. Zebra (W x L)

1/2 x 1/2 in

Max. Sato (W x L)

6.5 x 10 in

Max. Zebra (W x L)

7.1 x 10 in

Environmental

Environmental (Operating)

(5ºC to 40ºC)
41ºF to 104ºF

Environmental (Storage)

(-20ºC to 40ºC)
-4ºF to 104ºF
